臺灣鷹牌、精展頂針切斷研磨機（射梢切斷及研磨機）
臺灣鷹牌、精展頂針切斷機（射梢切斷機、高速切斷機）
臺灣精展精密切斷研磨機詳細說明：
1.適合模具\(yùn)圓梢,不銹鋼等,要求精密切斷面之加工件
2.切斷,研磨一次完成,可縮短工作時間,切斷面角度精準
3.採快速夾具設計，夾持方便快速
4.微調分厘卡，可快速定位尺寸
5.研磨砂輪，使用中可隨時微調修整，尺寸不變
6.穩定性高，磨損率低，使用壽命長
7.尺寸L430mm*W380mm*H540mm
8.定位尺長度300mm,500mm,600mm
9.砂輪片尺寸WA46K*100*50*20
10.轉速R.P.M 3600
11.切割精度￠25*300±0.01/±0.02/±0.03
12.直角精度￠25*90°±0.01/0.02/0.03

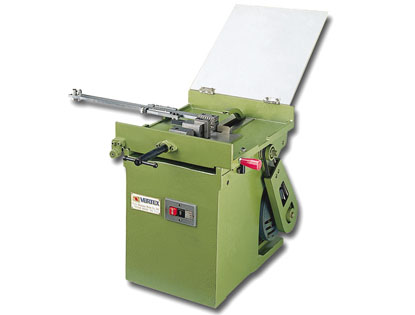

臺灣鷹牌射梢切斷及研磨機詳細說明
ORDER NO.
Cut-off precision
ANGLE
Cut-off sander lamina
Grinding sander
RPM
Motor
CAPA CITY
WEIGHT
SIZE
CODE NO.
Inquriy
VEC-300G
25m/mØ x 300m/m ±0.01
25m/mØ x 90° ±0.01
1m/m t x 180m/mØ (Hole) 31.8m/mØ
WA46K x 100 x 50 x 20
3600
3/4HP 110/220V 1 or 3 phase
VEC-300G 300mm VEC-500G 500mm VEC-600G 600mm
108.6Kgs(109.4Kgs)(110.5Kgs)
L430m/m x W360m/m x H500m/m
1024-010Inquriy
VEC-500G
25m/mØ x 300m/m ±0.01
25m/mØ x 90° ±0.01
1m/m t x 180m/mØ (Hole) 31.8m/mØ
WA46K x 100 x 50 x 20
3600
3/4HP 110/220V 1 or 3 phase
VEC-300G 300mm VEC-500G 500mm VEC-600G 600mm
108.6Kgs(109.4Kgs)(110.5Kgs)
L430m/m x W360m/m x H500m/m
1024-011Inquriy
VEC-600G
25m/mØ x 300m/m ±0.01
25m/mØ x 90° ±0.01
1m/m t x 180m/mØ (Hole) 31.8m/mØ
WA46K x 100 x 50 x 20
3600
3/4HP 110/220V 1 or 3 phase
VEC-300G 300mm VEC-500G 500mm VEC-600G 600mm
108.6Kgs(109.4Kgs)(110.5Kgs)
L430m/m x W360m/m x H500m/m
1024-012Inquriy
FEATURES
1. During operation, the grinding sander may be micro adjusted and repaired without changing its dimensions
2. The tightness of belt may be automatically adjusted and controlled (the larger the resistance, the tighter the belt.)
3. The dimensions precision of cutting off the length of working piece are not subject to the effect of the difference of thickness of cutting – off sander piece.
4. The rapid chuck is used to hold the working quick, and Ø1-25mm is the same.
5. When operation, a shaft with two tapered ends is used for transmission and characterized by high stability low wearing rate and long life.
6. The rapid bing rule is in the unit of 20mm and provided with a micro rule (0mm to 25mm) of which the zeroing point is the dimensions at the rapid bing point.
7. The minimum of cutting length is 60mm
