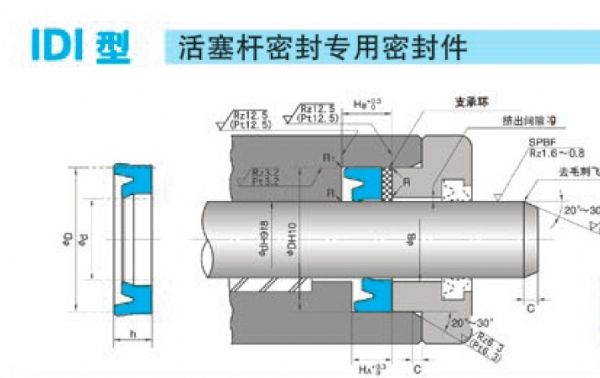

| IDI活塞桿專(zhuān)用密封件 | ||||||
| 密封件公稱(chēng)尺寸 | 溝槽部分尺寸 | NOK代碼 | ||||
| d | D | h | HA | HB | C | |
| 6.3 | 14.3 | 5 | 5.7 | 7.7 | 2.5 | FU0021-F0 |
| 16.3 | 6 | 7 | 9 | FU0022-F0 | ||
| 16.3 | 7.5 | 8.5 | 10.5 | FU0023-F0 | ||
| 16.3 | 8 | 9 | 11 | FU0024-F0 | ||
| 8 | 16 | 5 | 5.7 | 7.7 | FU0039-F0 | |
| 18 | 6 | 7 | 9 | FU0041-F0 | ||
| 18 | 7.5 | 8.5 | 10.5 | FU0042-F0 | ||
| 18 | 8 | 9 | 11 | FU0043-F0 | ||
| 9 | 17 | 5 | 5.7 | 7.7 | FU0051-F0 | |
| 19 | 6 | 7 | 9 | FU0052-F0 | ||
| 19 | 7.5 | 8.5 | 10.5 | FU0053-F0 | ||
| 19 | 8 | 9 | 11 | FU0054-F0 | ||
| 10 | 18 | 5 | 5.7 | 7.7 | FU0064-F0 | |
| 20 | 6 | 7 | 9 | FU0066-F0 | ||
| 20 | 7.5 | 8.5 | 10.5 | FU0068-F0 | ||
| 20 | 8 | 9 | 11 | FU0069-F0 | ||
| 11.2 | 19.2 | 5 | 5.7 | 7.7 | FU0078-F0 | |
| 21.2 | 6 | 7 | 9 | FU0079-F0 | ||
| 21.2 | 7.5 | 8.5 | 10.5 | FU0080-F0 | ||
| 21.2 | 8 | 9 | 11 | FU0081-F0 | ||
| 12.5 | 20.5 | 5 | 5.7 | 7.7 | FU0098-F0 | |
| 22.5 | 6 | 7 | 9 | FU0100-F0 | ||
| 22.5 | 7.5 | 8.5 | 10.5 | FU0101-F0 | ||
| 22.5 | 8 | 9 | 11 | FU0102-F0 | ||
| 14 | 22 | 5 | 5.7 | 7.7 | FU0116-F0 | |
| 24 | 6 | 7 | 9 | FU0120-F0 | ||
| 24 | 7.5 | 8.5 | 10.5 | FU0121-F0 | ||
| 24 | 8 | 9 | 11 | FU0122-F0 | ||
| 15 | 23 | 5 | 5.7 | 7.7 | FU0131-F0 | |
| 25 | 6 | 7 | 9 | FU0134-F0 | ||
| 25 | 8 | 9 | 11 | FU0135-F0 | ||
| 28 | 8 | 9 | 11 | 3.5 | FU0136-F0 | |
| 28 | 10 | 11 | 13 | FU0137-F0 | ||
