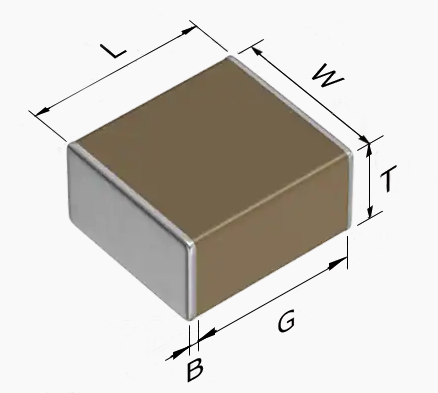

| 長度(L) | 5.70mm ±0.40mm |
| 寬度(W) | 5.00mm ±0.40mm |
| 厚度(T) | 2.30mm ±0.20mm |
| 端子寬度(B) | 0.20mm Min. |
| 推薦焊盤布局(PA) | 4.10mm to 4.80mm |
| 推薦焊盤布局(PB) | 1.20mm to 1.40mm |
| 推薦焊盤布局(PC) | 4.00mm to 5.00mm |
| 電容 | 10μF ±20% |
| 額定電壓 | 50VDC |
溫度特性
|
X7R(±15%) |
| 耗散因數 (Max.) | 5% |
| 絕緣電阻 (Min.) | 50MΩ |
| 溫度范圍 | -55～125°C |
| 焊接方法 | 回流 |
| AEC-Q200 | NO |
| 包裝形式 | 塑封編帶 (180mm卷筒) |
| 包裝個數 | 500pcs |
量產體制(新設計非推薦)推薦代替型號 :
