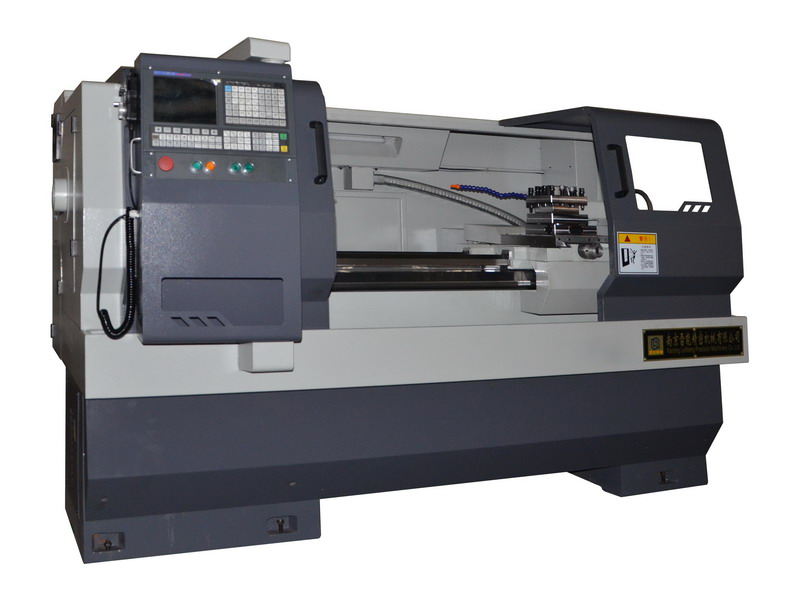

南京雷能數控車規格型號：CK6140×1000
|
技
術
參
數 |
項 目 |
參 數 |
|
|
Max swing over bed |
床身上最大回轉直徑 |
Φ400mm |
|
|
Max turning dia of workpiece |
拖板上最大回轉直徑 |
Φ245mm |
|
|
Max length of workpiece |
最大工件長度(兩頂尖) |
1000mm |
|
|
Spindle speed |
主軸轉速范圍 |
100-2000rpm |
|
|
Dia. of spindle bore |
主軸通孔直徑 |
Φ58mm |
|
|
Taper of spindle bore |
主軸內孔錐度 |
MT6 |
|
|
Taper of spindle outside |
主軸外端錐度 |
D-4 |
|
|
Dia of tail stock sleeve |
尾座套筒直徑 |
|
|
|
Store of tail stock sleeve |
尾座套筒行程 |
120mm |
|
|
Bore taper of tail stock sleeve |
尾座頂尖錐度 |
MT4 |
|
|
Rapid travel speed of X/Z axis |
最快移動速度X/Z軸 |
4/7.6m/min |
|
|
Min unit to be set X/Z axis |
最小設定單位X/Z軸 |
0.001/0.001mm |
|
|
Tool b nos of turret |
刀架工位數 |
4/6或排刀 |
|
|
Max size of tool post |
車刀刀桿最大尺寸 |
25×25mm |
|
|
Main motor power |
主電機功率(變頻電機) |
5.5KW |
|
|
Net weight |
機床凈重 |
1900kg |
|
|
Dimension(L×W×H) |
外形尺寸(長×寬×高) |
2680×1540×1950mm |
|
