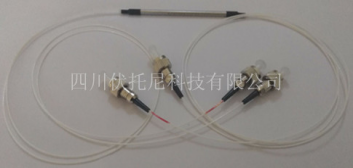

780nm(1x2 or 2x2)緊湊型熔融拉錐保偏分路器
Product Features產品特點
|
1.Low Excess Loss低附件損耗 |
|
|
|
|
2.High Extinction Ratio高消光比 |
|
||
|
3.High Power Handling高功率 |
|
||
|
4.Available for Slow or Fast Axis Operation 適合快軸和慢軸工作 |
|||
|
5.Telcordia GR-1221 Compliant Test可靠性測試 |
|
||
Product Applications產品應用
|
1.Optical Amplifiers 光纖放大器 |
|
2.Power Monitoring功率監測 |
|
3.Telecomm Systems通信系統 |
|
4.Testing Equipment設備測試 |
Specifications參數指標
|
Parameter參數 |
|
Unit單位 |
Premium P級 |
A grade A級 |
|
|
Port Configuration端口結構 |
|
|
1x2 or 2x2 |
||
|
Central Wavelength中心波長 |
|
nm |
780 |
||
|
Bandb帶寬 |
|
nm |
±20 |
||
|
Excess Loss附加損耗 |
Typ.典型值 |
dB |
0.6 |
0.8 |
|
|
Excess Loss附加損耗 |
Max.最大值 |
dB |
0.8 |
1 |
|
|
PER for Through Port |
Min.最小值 |
dB |
20 |
17 |
|
|
Operating power工作功率 |
Max.最大值 |
W |
2 |
||
|
Operating Temperature工作溫度 |
|
°C |
-40 to +85 |
||
|
Storage Temperature存儲溫度 |
|
°C |
-50 to +85 |
||
|
Package Type封裝類型 |
|
mm |
S4=?3x35mm / S6=?3x54mm |
||
|
Above PER is for more than 10%(CR) port, it's 2dB lower for no more than 10%(CR) port, and 4dB lower for no more than 5%(CR) port. All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors. |
|||||
|
Splitting Ratio & Its Tolerance 分光比和公差 |
|||||
|
Splitting Ratio分光比 |
Maximum Splitting Ratio Tolerance (%)最大分光比公差（%） |
||||
|
PremiumP級 |
A gradeA級 |
||||
|
99.5/0.5 |
±0.2 |
±0.3 |
|||
|
99/1 |
±0.4 |
±0.5 |
|||
|
98/2 |
±0.7 |
±1.0 |
|||
|
95/5 |
±1.8 |
±2.1 |
|||
|
90/10 |
±2.5 |
±3.0 |
|||
|
80/20 |
±3.0 |
±4.0 |
|||
|
Fiber Type光纖型號 |
|||||
|
Fiber Type |
PM Fiber Port |
SM Fiber Port |
|||
|
Type 1 |
Panda Fiber |
SMF-28e Fiber or Equivalent Fiber |
|||
|
Type 2 |
Panda Fiber |
HI1060 Fiber or Equivalent Fiber |
|||
|
Type 3 |
Panda Fiber |
HI780C Fiber or Equivalent Fiber |
|||
|
Type 4 |
Large Mode Area Panda Fiber |
HI1060 Fiber or Equivalent Fiber |
|||
