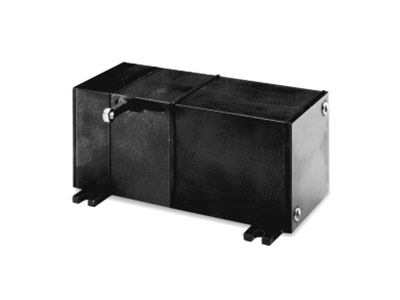

Celesco 電位計電纜延長傳感器PT5A采用獨特的熱塑性電纜，幾乎具有無限的疲勞壽命。這種電位計電纜擴展傳感器被稱為V62，具有優于高循環和堅固應用的性能。
Celesco PT5系列為工業級測試系列,完美的適用于高張力及頻繁的測試環境使用,多用于冶金行業,油缸監控等場合。
像Celesco的其他傳感器一樣，電位計電纜擴展傳感器Celesco PT5A安裝在幾分鐘內，無需完全平行對準即可正常工作，并可輕松適應小區域。
Celesco電位計電纜延長傳感器PT5A提供額外的安裝靈活性，因?yàn)槠潆娎|出口可以相對于安裝表面旋轉，提供四種不同的電纜出口方向。
The PT5A potentiometric cable-extension transducer uses a unique thermoplastic cable that has virtually an infinite fatigue life. This cable, known as V62, has properties that are superior for high cycle and rugged applications.
Like Celesco’s other transducers, the PT5A installs in minutes, functions properly without perfectly parallel alignment, and fits easily into small areas. The PT5A offers additional installation flexibility since its cable exit can be rotated relative to the mounting surface, providing four different cable exit orientations.
Celesco電位計電纜擴展傳感器PT5A -150-S47-FR-1K-M6M技術參數：
中等范圍/高周期應用
精密電位輸出
全程范圍0-30至0-125英寸Celesco型號PT5A
Celesco傳感器PT5A -150-S47-FR-1K-M6M
PT5A-150-S47-FR-10K-M6M
150 量程為150英寸，3810mm;
S47 拉繩直徑為0.047英寸，1.19mm;拉繩材質為不銹鋼;
FR 出繩方向?yàn)橄蚯?span>;
1K 輸出信號為電位計輸出，1K;
M6M 電氣連接為六針金屬連接頭帶安裝插頭;
精度為0.18%滿量程
Full Stroke Range Options ：0-10 to 0-250 inches
Output Signal Options： voltage divider (potentiometer)
Accuracy：± 0.75% to ±0.18% full stroke see ordering inbation
Repeatability： see ordering inbation
Resolution ： essentially infinite
Measuring Cable Options：stainless steel or thermoplastic
Enclosure Material：hard anodized aluminum
Sensor ： plastic-hybrid precision potentiometer
Potentiometer Cycle Life：see ordering inbation
Maximum Measuring Cable Velocity： see ordering inbation
Maximum Retrb Acceleration：see ordering inbation
Weight：5 lbs. max
