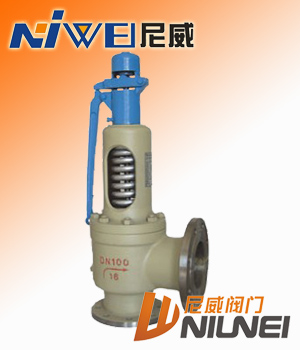

A48Y-16C彈簧全啟式安全閥（法蘭蒸汽安全閥）
A48Y彈簧式蒸汽安全閥適用于工作溫度≤350℃的蒸汽、空氣等介質的設備和管路上。
連接法蘭標準PN＜6.4MPa按JB/T-94系列1。PN≥6.4MPa按JB/T-94系列2標準。
彈簧全啟式安全閥主要零部件材料
|
NO.
|
零件名稱
|
A48Y-C A44Y-C 材料
|
A44Y-P材料
|
A44Y-R材料
|
|
1
|
閥體
|
WCB
|
ZG1Cr18Ni9Ti
|
CF8M
|
|
2
|
閥座
|
2Cr13
|
1Cr18Ni9Ti
|
316
|
|
3
|
調節圈
|
ZG2Cr13
|
ZG1Cr18Ni9Ti
|
0Cr18Ni12Mo2Ti
|
|
4
|
反沖盤
|
ZG2Cr13
|
ZG1Cr18Ni9Ti
|
316
|
|
5
|
閥瓣
|
2Cr13
|
1Cr18Ni9Ti
|
316
|
|
6
|
導向套
|
2Cr13
|
1Cr18Ni9Ti
|
0Cr18Ni12Mo2Ti
|
|
7
|
閥蓋
|
ZG230-450
|
ZG230-450
|
ZG230-450
|
|
8
|
彈簧
|
50CrVA
|
50CrVA包覆氟塑料
|
50CrVA包覆氟塑料
|
|
9
|
閥桿
|
2Cr13
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
|
10
|
扳手
|
ZG200-400
|
ZG200-400
|
ZG200-400
|
|
11
|
調整螺桿
|
45
|
2Cr13
|
2Cr13
|
|
12
|
保護罩
|
ZG200-400
|
ZG200-400
|
316
|
|
|
密封面材料
|
堆焊Co基硬質合金
|
||
彈簧全啟式安全閥外形尺寸和連接尺寸
|
型號
|
公稱通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-?d
|
DN'
|
D1
|
K1
|
g3
|
g2
|
b1
|
f'
|
f1'
|
Z1-?d1
|
L
|
L1
|
≈H
|
|
A48Y-16C
|
20
|
15
|
105
|
75
|
|
55
|
16
|
2
|
|
4-14
|
25
|
115
|
85
|
|
65
|
16
|
2
|
|
4-14
|
110
|
95
|
411
|
|
25
|
16
|
115
|
85
|
|
65
|
16
|
2
|
|
4-14
|
32
|
140
|
100
|
|
78
|
18
|
2
|
|
4-18
|
110
|
95
|
411
|
|
|
32
|
20
|
140
|
100
|
|
78
|
18
|
2
|
|
4-18
|
40
|
150
|
110
|
|
85
|
18
|
3
|
|
4-18
|
115
|
100
|
411
|
|
|
40
|
25
|
150
|
110
|
|
85
|
18
|
3
|
|
4-18
|
50
|
165
|
125
|
|
100
|
20
|
3
|
|
4-18
|
120
|
110
|
472
|
|
|
50
|
32
|
165
|
125
|
|
100
|
20
|
3
|
|
4-18
|
65
|
185
|
145
|
|
120
|
20
|
3
|
|
4-18
|
135
|
120
|
532
|
|
|
65
|
40
|
185
|
145
|
|
120
|
20
|
3
|
|
4-18
|
80
|
200
|
160
|
|
135
|
20
|
3
|
|
8-18
|
160
|
140
|
556
|
|
|
80
|
50
|
200
|
160
|
|
135
|
20
|
3
|
|
8-18
|
100
|
220
|
180
|
|
155
|
22
|
3
|
|
8-18
|
170
|
135
|
561
|
|
|
100
|
65
|
220
|
180
|
|
155
|
20
|
3
|
|
8-18
|
125
|
250
|
210
|
|
185
|
22
|
3
|
|
8-18
|
195
|
175
|
667
|
|
|
125
|
80
|
250
|
210
|
|
185
|
22
|
3
|
|
8-18
|
150
|
285
|
240
|
|
210
|
24
|
3
|
|
8-23
|
210
|
190
|
857
|
|
|
150
|
100
|
285
|
240
|
|
210
|
24
|
3
|
|
8-23
|
175
|
310
|
270
|
|
240
|
26
|
3
|
|
8-23
|
255
|
230
|
915
|
|
|
200
|
125
|
340
|
295
|
|
265
|
26
|
3
|
|
12-23
|
250
|
405
|
355
|
|
320
|
30
|
3
|
|
12-26
|
300
|
260
|
1073
|
|
|
250
|
150
|
405
|
355
|
|
320
|
30
|
3
|
|
12-26
|
300
|
460
|
410
|
|
375
|
30
|
4
|
|
12-26
|
350
|
320
|
1307
|
|
|
300
|
220
|
460
|
410
|
|
375
|
30
|
4
|
|
12-26
|
400
|
580
|
525
|
|
485
|
36
|
4
|
