| TECHNICAL SPECIFICATIONS | CP000470-D01-070-0500 |
|---|---|
| Optical resolution (μm/pixel) | 70 |
| Field of view (mm) | 500 |
| Number of pixel | 7142 |
| Height resolution (μm)* | 14 |
| Height range (mm)** | 52.3 |
| Free working distance (mm) | 796.9 |
| Maximum speed (mm/s) | 1480 |
| Line frequency (kHz) | 21.2 |
| Dimensions LxWxH (mm) | 222 x 352 x 98.5 |
| CAMERA SPECIFICATIONS | |
|---|---|

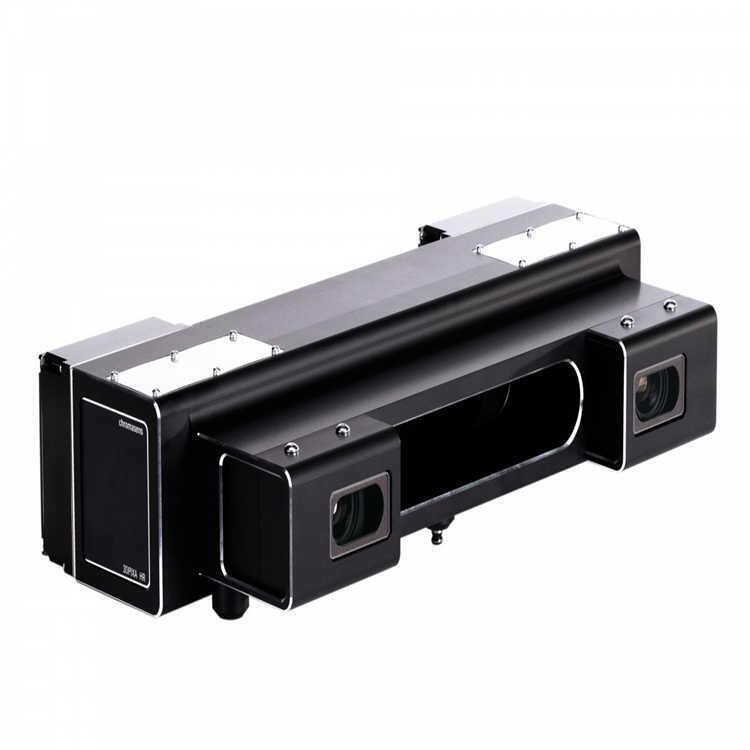

| Camera | Stereo camera with lenses (factory calibrated) |
| Sensor | Tri-linear CCD line-sensor (RGB) |
| Active pixel size | 10 μm x 10 μm |
| Interfaces |
Camera Link Base/Medium External I/O Serial (RS-232) Power supply (Hirose) |
| Power supply | 24 V DC +/- 10% 32/38 W |
| Trigger mode | Free run / external trigger |
| Operating temperature | 0°C to 60°C, 32°F to 140°F (housing temperature) |
| Additional accessories | Chromasens Corona II illumination |
| Certifications | CE, FCC compliant, RoHS |
|
* Height range and height resolution depend on b surface. |
|
