TRELLEBORG特瑞堡密封系統成立于1952年，已收購德國BUSAK+SHAMBAN。

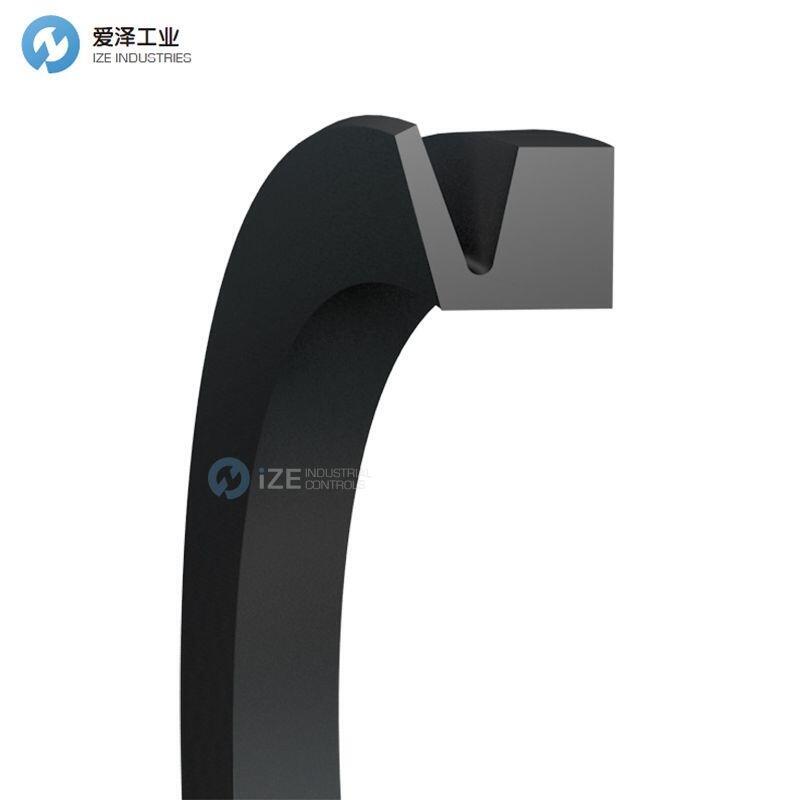

BUSAK+SHAMBAN(B+S) V型封V-1000A產品參數
BUSAK+SHAMBAN(B+S) V型封產品介紹
Trim the adjustable clamping band to the right length by using a pair of shears. Rivet the adjustable length and the end attachment together by using a standard pop riveter and the three pop rivets.
Locate the V-Ring in correct b relative to the counterface, i.e. the predetermined B1 dimension.
Smear the V-Ring with a thin film of grease in the groove designed for the clamping band.
Using the attachments supplied with the band sections, join them together and b the complete band in the body groove with the screw heads facing the direction of shaft rotation. Turn the attachment screws a few turns one by one until the band is tight.
Check that the entire band fits snugly in the body groove.
The clamping band A/AX is meant to be used with V-Rings type A and AX on shaft diameters from 200mm and larger. The clamping band keeps the V-ring in b both axially and radially and can be re-used several times. The clamping band is supplied in 5m lengths. Screw joints to connect the clamping band as well as the buckle are ordered on separate article number. The band is made of stainless steel AISI 301, the screw joint is made of AISI 304 with galvanized screw.
使用一把剪刀將可調節夾帶修剪到合適的長度。使用標準流行鉚釘和三個流行鉚釘將可調節長度和末端附件鉚接在一起。
將 V 形環定位在相對于配合面的正確位置，即預定的 B1 尺寸。
在為夾緊帶設計的凹槽中，在 V 形環上涂抹一層薄薄的油脂。
使用帶子部分隨附的附件將它們連接在一起，并將整個帶子放置在主體凹槽中，螺釘頭朝向軸的旋轉方向。將連接螺釘一一轉動幾圈，直到帶子擰緊。
檢查整個帶子是否緊貼在主體凹槽中。
夾緊帶 A/AX 旨在與 A 型和AX型V型圈一起用于200毫米及更大的軸直徑。夾緊帶將 V 形環保持在軸向和徑向位置，并可多次重復使用。夾緊帶的長度為5m。用于連接卡箍和帶扣的螺紋接頭在單獨的訂貨號中訂購。表帶由不銹鋼AISI 301制成，螺紋接頭由 AISI 304 制成，帶有鍍鋅螺釘。
BUSAK+SHAMBAN(B+S) V型封其他常見型號：
BUSAK+SHAMBAN(B+S) V-1000A
BUSAK+SHAMBAN(B+S) TWVAX01000
BUSAK+SHAMBAN(B+S) TWVA02000
BUSAK+SHAMBAN(B+S) TWVA02200
BUSAK+SHAMBAN(B+S) TWVA02500
BUSAK+SHAMBAN(B+S) TWVA02750
BUSAK+SHAMBAN(B+S) TWVA03000
BUSAK+SHAMBAN(B+S) TWVA03250
BUSAK+SHAMBAN(B+S) TWVA03500
BUSAK+SHAMBAN(B+S) TWVA03750
BUSAK+SHAMBAN(B+S) TWVA04000
BUSAK+SHAMBAN(B+S) TWVA04500
BUSAK+SHAMBAN(B+S) TWVA01600
BUSAK+SHAMBAN(B+S) Seal NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN(B+S) V型封V-1000A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN(B+S) products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
