Measuring insert for resistance thermometer
Model TR10-A
Measuring inserts for resistance thermometers

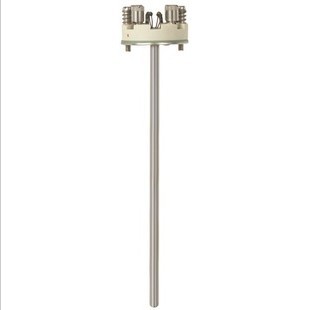

Fig. left: Model TR10-A, standard version
Fig. right: Model TR10-A, with recessed soldering lugs
(option)
Applications
Replacement measuring insert for servicing
For all industrial and laboratory applications
Special features
Application ranges from -200 ... +600 °C
Made of mineral-insulated sheathed cable
Functional safety (SIL) with model T32 temperature transmitter
Spring-loaded design
Explosion-protected versions
Debion
The measuring inserts per DIN 43735 for resistance thermometers described here are designed for installation in a protective fitting. Operation without a thermowell is only advisable in special cases. The measuring insert is manufactured from bendable, mineral-insulated sheathed cable. The sensor is located in the tip of the measuring insert.
The measuring inserts are delivered with loading springs to ensure a good contact to the thermowell floor. Apart from the DIN versions, customer specific versions are available, for example:
other measuring insert lengths (also intermediate lengths)
with mounted sleeve to suit inner diameter of the thermowell
without terminal block
with transmitter
Type and number of sensors, accuracy and b of connection can each be selected to suit the respective application. The range of applications is completed by designs without terminal block for direct transmitter installation. Optionally,
analogue or digital transmitters from the WIKA range can be installed.
