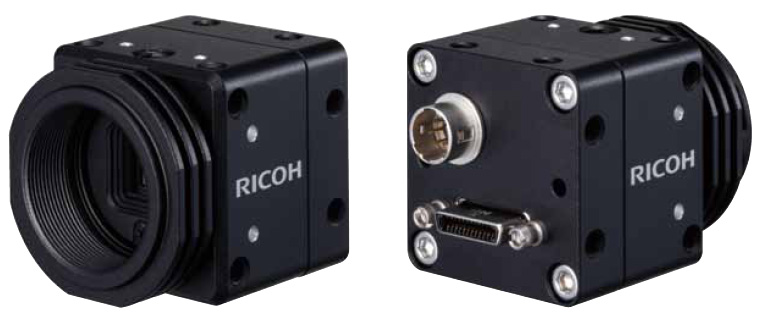

Outline･Features

Used for the inspection of displays, solder defects and high precision flaw detection of semiconductors, liquid crystal and plasma flat panel displays, circuit boards, etc.

• 35 mm x 35 mm compact design
• Uses PoCL (Power over Camera Link), which has a strong track record as a high-resolution digital camera interface
• High-speed frame rate of 5MP: 16 fps
• Various trigger modes (pulse b, edge preset trigger) as standard features
• In addition to camera tripod screw holes, M4 screw holes are located on four all sides
• For increased mounting precision, mounting holes are arranged based on the CCD’s optical axis
• Dual power alternatives, either PoCL or an external supply possible
• [Exposure-interval signal output] emits the camera exposure interval enabling efficient inspection
  [Supported cameras] FV-L500B1, FV-L200B1, FV-L030B1, FV-G200B1, FV-G030B1

Exposure-interval signal output—which can start the next exposure during the transfer of the previous image—makes it possible to achieve high-speed work inspection^*, thereby raising inspection efficiency. In addition, since the camera exposure interval is output externally, it can be used for various purposes.

Outline･Features

Handles a wide range of inspection uses, such as bing prior to liquid crystal glass processing, circuit board mounted component checks and mounting inspection, automotive component flaw detection, medicine tablet inspection, etc.

• High-speed frame rate of 2MP: 15 fps
• Ultra-compact 28 mm × 28 mm CCD camera among the smallest in the industry
• Uses PoCL (Power over Camera Link), which has a strong track record as a high-resolution digital camera interface
• Camera contains automatic control functions for gain and shutter
• Various trigger modes (pulse b, edge preset trigger) as standard features
• Image processing with an on-board lookup table possible in the camera
• M4 screw holes are located on four sides
  Sturdy construction for increased mounting precision
• Dual power alternatives, either PoCL or an external supply possible
• [Strobe signal output] enables user adjustment of exposure and the timing of light emission
  [Supported cameras] FV-L200B1, FV-L030B1, FV-G200B1, FV-G030B1

Incorporating a strobe signal output (LVCMOS level) function for light emission use. With this function, it is possible for the user to adjust the camera exposure timing (delay, time) and light emission timing (delay, time) in accordance with the trigger b signal received by the camera.

Outline･Features

Suitable for uses such as component alignment, bing, simple direction determination before component processing, taping and mounted device part presence/absence confirmation, etc.

• High-speed frame rate of VGA： 90 fps
• Ultra-compact 28 mm × 28 mm CCD camera among the smallest in the industry
• Uses PoCL (Power over Camera Link), which has a strong track record as a high-resolution digital camera interface
• Camera contains automatic control functions for gain and shutter
• Various trigger modes (pulse b, edge preset trigger) as standard features
• Image processing with an on-board lookup table possible in the camera
• M4 screw holes are located on four sides
  Sturdy construction for increased mounting precision
• Dual power alternatives, either PoCL or an external supply possible
• [Lookup table (gamma curve)] enables luminance settings at all gradients for creation of finely detailed images
  [Supported cameras] FV-L200B1, FV-L030B1, FV-G200B1, FV-G030B1

On a camera with pre-processing functions, it is possible to correct luminance at all gradients using an on-board lookup table prepared by the user based on subject characteristics and inspection bives. This also reduces the burden on the PC’s CPU and increases processing speed. In addition, the lookup table can be prepared as a CSV file and uploaded.
