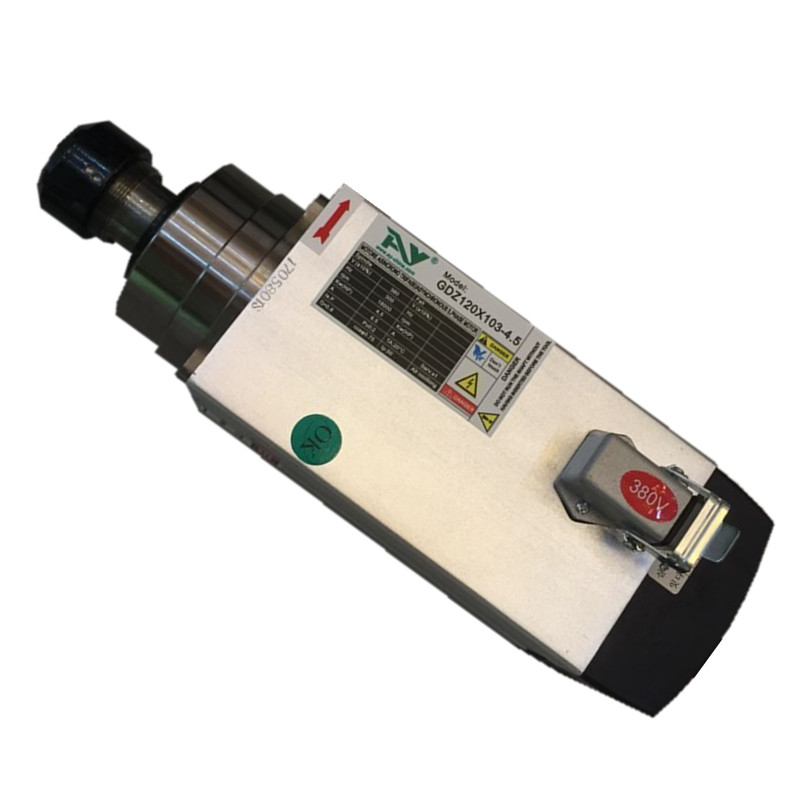

型號Spindle type: GDZ120X103-4.5
1.轉(zhuǎn)速Rev(rpm):18000
2.功率Power(kw):3.5
3.電壓Voltage(V):380
4.電流Current(A):9.5
5.頻率Frequency(HZ):300
6.風(fēng)冷Cooledby air
7.軸承型號Bearing type:2×7008C P4
2×7004C P4
8.油脂潤滑Lubricate：grease
9.夾帽Collet(mm):ER32
10.保修Repair time:bearing(half year),spindle(one year)
11.長度/寬度/高度Length/b/hight(mm):328/103/120
12.balance test result(ms*s):2.4rpm<5
13.L(mm):328,L1(mm):25,L2(mm):60,L3(mm):60,L4(mm):36,
L5(mm):91,L6(mm):103,H(mm):146, H1(mm):60
14.重量weight（kg）:13KG
15.品牌Brand:韓國AY
